When it comes to ensuring optimal operation and performance of electrical equipment, understanding the types of relay switches that are best suited for a given application is critical. Selecting the wrong type of switch can lead to additional costs in time and money due to system inefficiencies, as well as potential safety risks.
Any electrical engineering project requires careful consideration when selecting the right kind of relay switch for a particular application. Relay switch come in a number of designs, each intended for a particular use. It is crucial to take into account a number of different aspects when selecting the right relay switch for a particular application, including the amount of current that needs to be switched, the voltage requirements, the price, and the size of the application. The environment and circumstances in which the relay switch must function should also be considered. Making the best choice for a particular application depends on understanding the operational characteristics of the various types of relay switches.
1. Understanding the Application
Understanding the application is a crucial step in selecting the appropriate type of relay switch. This involves gaining a clear understanding of the purpose of the application, the electrical components involved, and the specific requirements for the relay switch.
To begin, it is important to understand the purpose of the application. This can include identifying what the application is designed to do, as well as any specific performance requirements or constraints. For example, if the application is a motor control circuit, it is important to understand the required voltage, current, and frequency of the motor. Understanding the purpose of the application also involves identifying any safety requirements or regulatory compliance issues that need to be considered.
Next, it is important to understand the electrical components involved in the application. This can include identifying the voltage and current requirements of the circuit, the types of loads that will be switched, and any other electrical components that will be involved in the application.
Finally, it is important to identify the specific requirements for the relay switch. This can include factors such as the type of load being switched, the expected life of the relay, the required switching speed, and any environmental factors that need to be considered.
By gaining a clear understanding of the application, the electrical components involved, and the specific requirements for the relay switch, it is possible to select the appropriate type of relay switch for the application. This will ensure that the application operates safely and effectively, while also maximizing the performance and lifespan of the relay switch.
2. Identify The Correct Type of Switch
Any network technician in the modern business environment needs to be familiar with the many switch kinds. Finding the right kind of switch when working on a new project might be challenging. There are many things to take into account, including the size of the network, the total user count, and the kinds of applications the network will support.

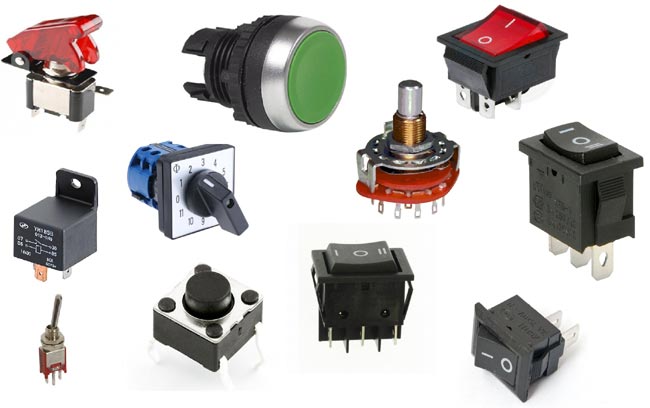

Identifying the correct type of switch for a given application is essential for ensuring an efficient and properly functioning system. Depending on the type of application, a variety of switches may be available, and it is important to select the one that is most suitable. Some common types of switches are toggle switches, rocker switches, push-button switches, micro switches, and rotary switches. Each of these have their own unique characteristics and uses, so it is important to assess the needs of the application and select a switch that will best meet them. For example, a toggle switch may be optimal for heavier loads, while a rocker switch may be better for controlling low-wattage devices.
3. Factors to Consider
There are several factors that should be considered when selecting the appropriate type of relay switch for a given application. These factors include:
- Load type: The type of load being switched (e.g., inductive, capacitive, resistive) can have a significant impact on the selection of the relay switch.
- Contact rating: The contact rating of the relay switch must be sufficient to handle the voltage and current requirements of the application.
- Switching speed: The required switching speed of the relay switch must be considered, as some types of relay switches may be too slow for certain applications.
- Expected life: The expected life of the relay switch must be considered, as some types of relay switches have a shorter lifespan than others.
- Environmental factors: The operating environment of the application (e.g., temperature, humidity, vibration) can have an impact on the selection of the relay switch.
- Cost: The cost of the relay switch must be considered, as some types of relay switches may be more expensive than others.
By considering these factors, it is possible to select the appropriate type of relay switch for a given application that will provide reliable and efficient operation.
4. Getting the Proper Relay Switch In Accordance with the Requirements
When installing a relay switch, it is important to ensure that the switch is in accordance with the requirements of the system it is being installed into. A relay switch is a vital component of an electrical system, as it is responsible for controlling the flow of current from one point to another. With a properly installed relay switch, an electrical system can function as it should. However, an improperly installed switch can lead to serious problems, such as malfunctions, fires, and damage to the system. Therefore, it is essential that the correct relay switch is chosen in order to ensure the proper functioning of the system.

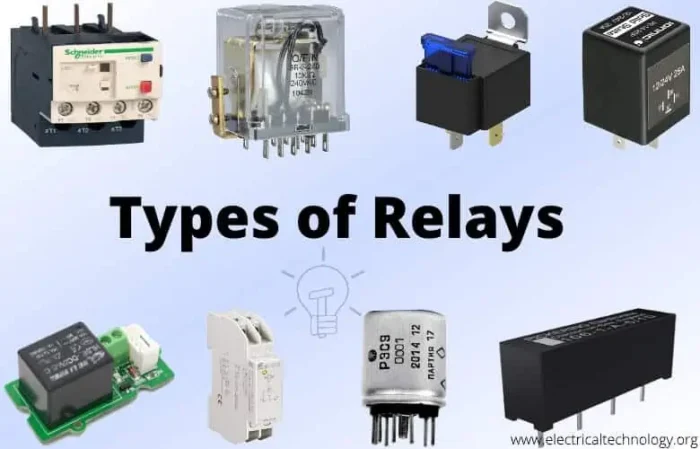

It is important to consider the needs for that particular application into account while choosing the right relay switch. Considerations include the type of contacts, voltage, current, and environmental conditions that the switch must tolerate. Relays of all kinds, including electromechanical, solid-state, and reed types, each have special qualities that need to be taken into account. When choosing the right relay switch, mounting type, size, and configuration should also be taken into consideration. It’s crucial to do your homework on the switch’s manufacturer to make sure you’re getting a dependable, high-quality item. Finding the ideal relay switch for the application requires carefully weighing all the requirements.
